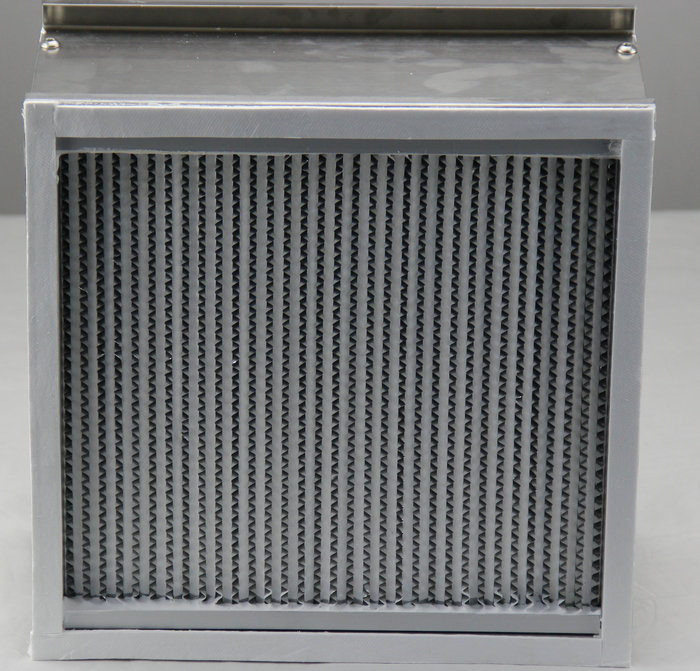

耐高温高效空气过滤器
High temperature resistant efficient air filter
特点 Features
●阻力低、容尘量大
●耐高温性能好
●主要用于超净烘箱等要求高温空气净化设备和系统.
●Low resistance and large amount of dust
●High temperature resistant performance is good
●Mainly used in high temperature oven laminar
air purification equipment and systems.
构成材料及运行条件 Materials and operating conditions
●框材:不锈钢外框 ●密封物:专用耐高温密封胶
●External frane:Stainless steel frame ●Sealant:High temperature resistant sealant
●分隔物:铝箔 ●滤料:玻纤滤纸
●Filter media:Aluminum foil ●Filter media:Glass fiber
●使用最高温度、湿度:250~350℃、80%
●Use the highest temperature, humidity:250~350℃、80%
型号尺寸及其他参数(Standard specification)
型号 model | 外形尺寸 Outside dimensions (mm) | 额定风量 Rated air flow (m3/h) | 初阻力 Imitial resistance (Pa) | 效率(比色法) Efficiency (%) | 容尘量 Dust capacity (g) |
XN-NGX-10J1 | 484×484×220 | 1000 | ≤220 | ≥99.99 | 600 |
XN-NGX-10J | 610×610×150 | 1000 | ≤220 | ≥99.99 | 350 |
XN-NGX-16J | 630×630×220 | 1600 | ≤220 | ≥99.99 | 400 |
XN-NGX-22J | 610×610×292 | 2200 | ≤220 | ≥99.99 | 600 |
*可根据用户要求定制不同规格型号的过滤器
According to user requirements to customize different specifications and types of filters
耐高湿高效空气过滤器
High temperature resistant efficient air filter
特点 Features
●阻力低、容尘量大
●耐湿度性能好
●适用高湿条件下,物别是医药输液生产等高湿度环境的空气净化
●Low resistance and large amount of dust
●Humidity resistant properties
●Suitable humidity conditions, especially medicine production
of high humidity infusion, air purification
构成材料及运行条件 Materials and operating conditions
●框材:金属外框 ●密封物:聚胺脂胶
●External frane:Metal frame ●Sealant:Gel-glue
●分隔物:特制胶板纸 ●滤料:特种防潮玻纤滤纸
●Filter media: JiaoBanZhi special ●Filter media:Special moistureproof fiberglass filter
●使用最高温度、湿度:80℃、100%
●Use the highest temperature, humidity:80℃、100%
型号尺寸及其他参数(Standard specification)
型号 model | 外形尺寸 Outside dimensions (mm) | 额定风量 Rated air flow (m3/h) | 初阻力 Imitial resistance (Pa) | 效率(纳焰法) Efficiency (%) | 容尘量 Dust capacity (g) |
XN-SGX-5J | 305×610×150 | 500 | ≤220 | ≥99.99 | 300 |
XN-SGX-7.5J | 460×610×150 | 750 | ≤220 | ≥99.99 | 450 |
XN-SGX-10J | 610×610×150 | 1000 | ≤220 | ≥99.99 | 600 |
XN-SGX-15J | 915×610×150 | 1500 | ≤220 | ≥99.99 | 900 |
*可根据用户要求定制不同规格型号的过滤器
According to user requirements to customize different specifications and types of filters
